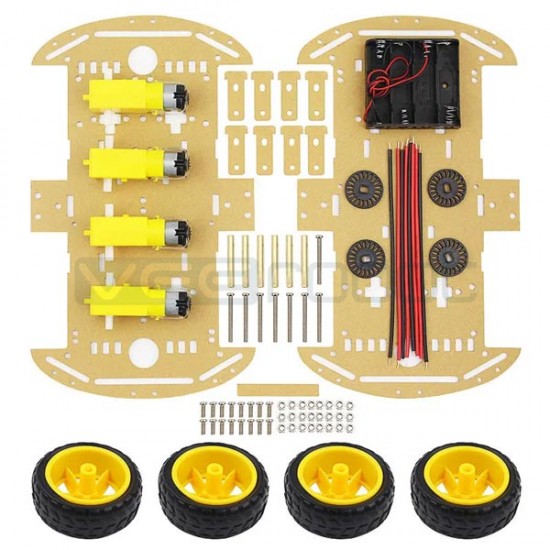

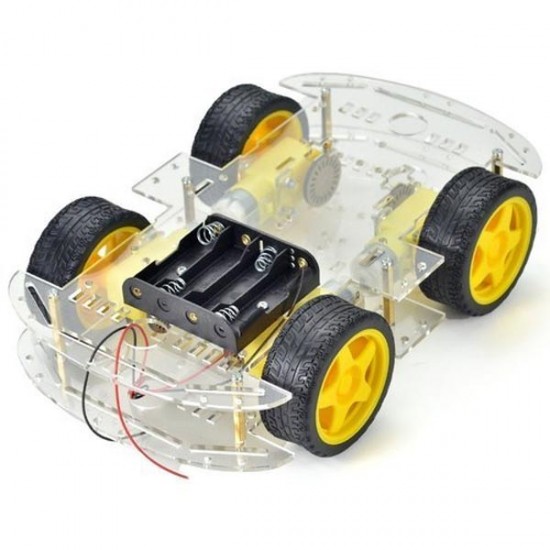

Four Wheel Drive - 4WD Acrylic Robot Chassis Set

This 4-wheeled chassis is a platform for learning robotics, microcontroller programming, electronics and sensor integration. The kit contains all the components required to build a nice, high performance robot platform in no time.

The main body of the chassis is made of Laser-Cut Clear-Acrylic sheet and can hold four gear motors on all four sides. The kit also includes a 4AA battery holder for four AA batteries (not included) with battery terminals that protrude through the chassis and can be accessed from the top. Each dual shaft motor has one side holding the wheel while the other is connected to an encoded disk. The chassis has enough holes and openings for mounting Sensors, Servo, Motor Drivers, and control modules. This kit can be used to build a robot for distance sensing, Obstacle Avoidance, Line follower, Flame Detector, Speed Tester, Wireless remote controlled Car, and any other creative works you can think of.

NOTE: The kit requires assembling and you may need an additional screwdriver to set the screws and nuts together. Remember, the fun begins with assembling :) Also, the chassis has a layer of protective paper on both sides. You may either choose to remove and assemble it, or leave it as is.

Features

• Laser Cut Acrylic Chassis to enhance creativity & innovation
• Four 300 RPM dual shaft motors - Useful for any kind of robots
• High Quality Wheels & Motors
• Placeholders for different sensors, servos and modules
• M3 holes Arduino Board, Raspberry Pi and additional sensors
• Battery holder, Brackets, screws and nuts included

Specifications

• Robot Type : Four Wheel Drive Multi utility Robot
• Motors : 300RPM High Torque Motors
• Wheels : 70mm x 4mm Plastic wheels with rubber tires
• Chassis : 3mm Thickness Laser cut Night Black chassis
• Holes and Slots : Control Board, Motor Driver, Battery Holder, Sonar, Servos etc.
• Weight : 300g
• Dimensions : 26 x 15 x 6cm

Shipping List

• Four Wheel Drive - 4WD Acrylic Robot Chassis Set x 1
