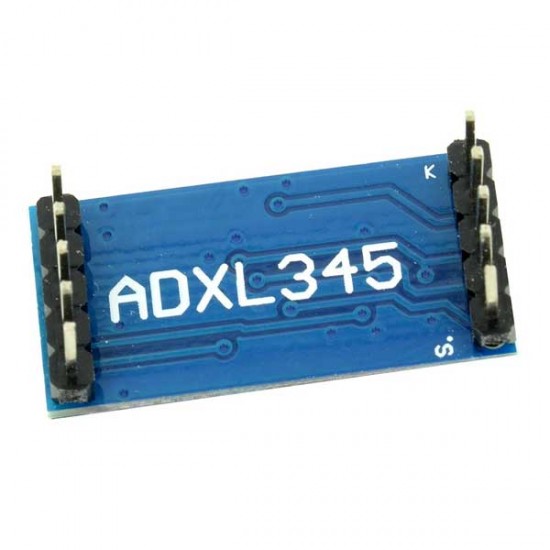

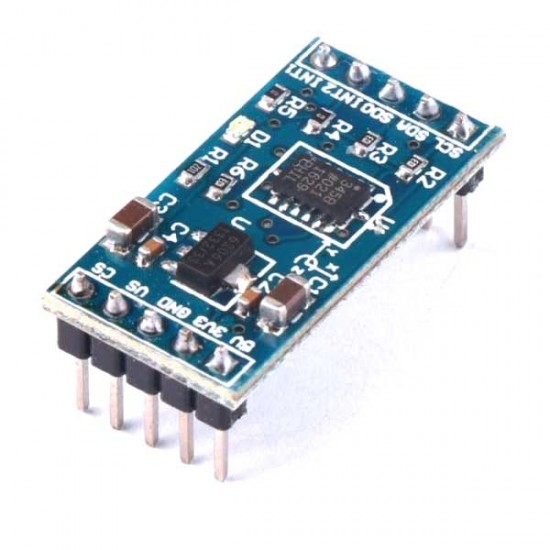

ADXL345 - Triple Axis Linear Accelerometer Module

This ADXL345 module is low power consumption module with a 3-axis accelerometer. The module communicates via I2C or SPI communication to a MCU with user selectable sensitivity, and 10-13 bit resolution. The ADXL345 is well suited to measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0° with several special sensing functions. Activity and inactivity sensing detect the presence or lack of motion if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins.

Specifications

• 0.1"" breadboard friendly pins
• Operating Voltage : 3.3-5v
• Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
• Onboard RT9161 faster load the appropriate speed
• Ideal for noisy power environment
• SPI and I2C interfaces
• Sensitivity:X:28.6 LSB/g, Y:31.2 LSB/g, Z:34.5 LSB/g
• Dimensions : 28x14mm

Shipping List

• ADXL345 - Triple Axis Linear Accelerometer Module x 1

Good to Know

• Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability with built-in antenna
