Name: Battery Charge Protection Module 3S 25A for 18650 Lithium Ion Battery - 11.1V
Brand: VEEROBOT
SKU: VEE00239
Price: 269.00 INR
Availability: InStock

Battery Charge Protection Module 3S 25A for 18650 Lithium Ion Battery - 11.1V

Battery Charge Protection Module 3S 25A for 18650 Lithium Ion Battery - 11.1V

Stock: In Stock
Model: MOD-PRS-REGC-239
Weight: 15.00g
Dimensions: 5.60cm x 4.50cm x 0.20cm
SKU: VEE00239
MPN: MOD-PRS-REGC-239
Location: KA, India

VEEROBOT

>10 Units sold

Product Views: 6407

Based on 0 reviews.-Write a review

Rs269.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

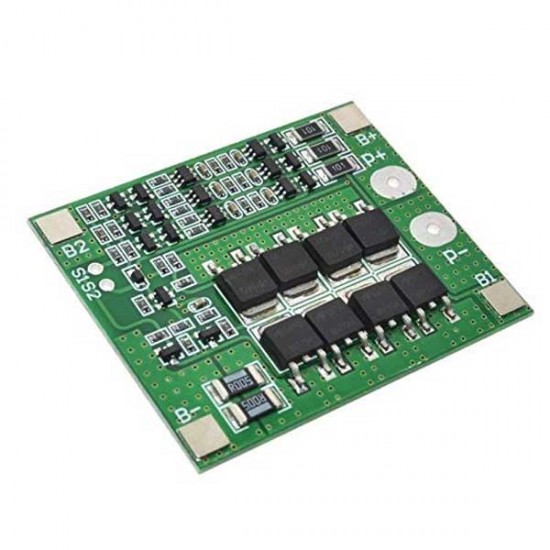

This is a 3S 12V 25A 18650 Lithium Battery Protection Board with 14.8V - 16V output. The module has overcharge protection function, overdischarge protection, short-circuit protection, over current protection.

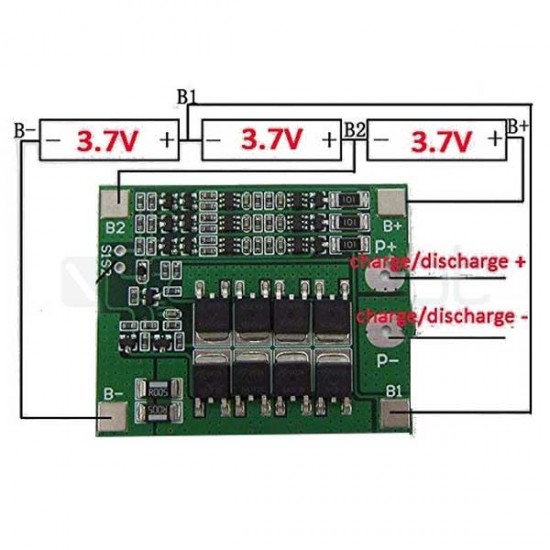

Note: Connect the battery as shown in the image and discharge on P+ and P- pins. Secondly, once the complete connections are done, make sure to connect to charger atleast once for a few seconds to activate the BMS

Specifications

Protection boards for battery packs
Overdischarge voltage range: 2.3-2.7v + 0.05v
Overcharge voltage range: 4.25-4.35v + 0.05v
Operating current: 0 – 25A
Instantaneous current: 35 – 40A
Quiescent current: less than 30uA
Balance current: about 40 – 50mA
Dimensions : 56.5x45mm

Shipping List

Battery Charge Protection Module 3S 25A for 18650 Lithium Ion Battery - 11.1V x 1
