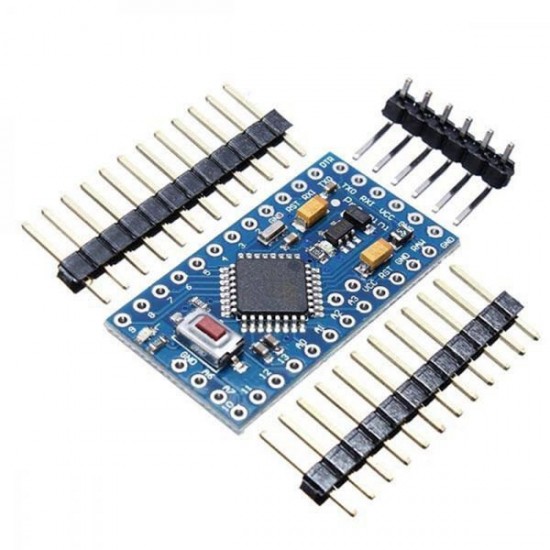

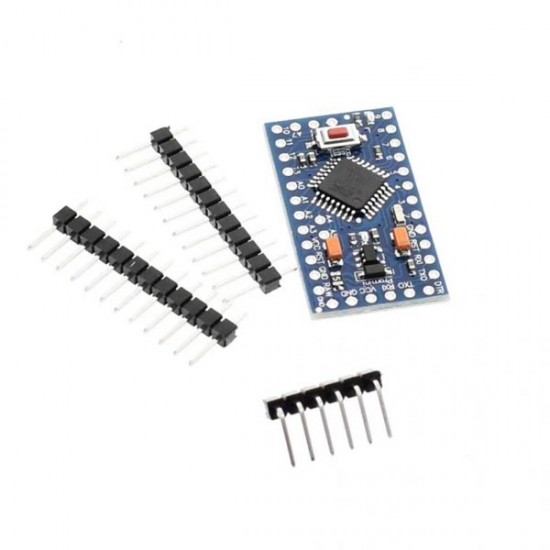

Arduino Pro Mini 5V ATmega328P - Compatible

Pro Mini 5V/16MHz is a great board that will get you up and running quickly on Arduino quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off-board. If you are not familiar with Arduino, we suggest you to check out Arduino Uno board which is beginner friendly and you get to see a lot of tutorials for Uno.

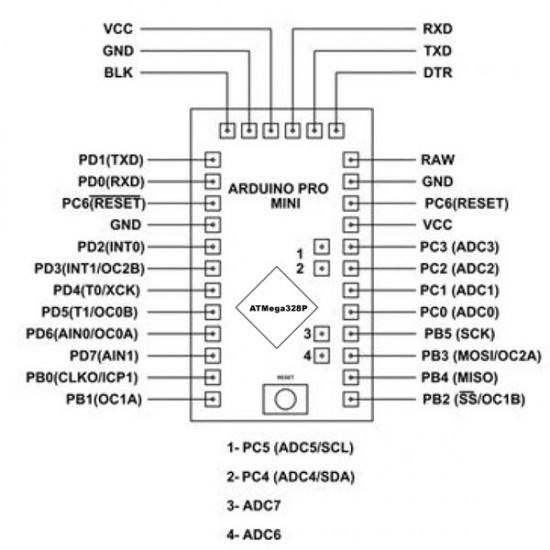

A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini Arduino is intended for semi-permanent installation in objects or exhibitions. The pin layout is compatible with the Mini Arduino

There are two versions of the Pro Mini. One runs at 3.3V and 8 MHz, and the other at 5V 16 MHz. This is a 5v-16Mhz version.

Features

• ATmega328P running at 16MHz with external resonator (0.5% tolerance)
• 0.8mm Thin PCB
• USB connection off board
• Supports auto-reset
• 5V regulator
• Max 150mA output
• Overcurrent protected
• Weighs less than 2 grams
• DC input 5V up to 12V
• Onboard Power and Status LEDs
• Analog Pins: 8
• Digital I/Os: 14
• 6 PWM port: D3, D5, D6, D9, D10, D11
• Use For Atmel Atmega328P-AU microcontroller
• Support serial download
• Support 9V battery

Specifications

• Based on ATMega328P (SMD)
• Input Voltage : 2.7-5.5 V
• Operating Voltage : 5V
• DC Current per I/O Pin : 20mA
• DC Current for 3.3v Pin : 50mA
• Flash Memory : 32 KB, 0.5KB used by Bootloader
• SRAM : 2 KB
• EEPROM : 1 KB
• Clock Speed : 16 MHz
• Digital Pins : 14 with 6 PWM pins
• Weight : less than 5 grams
• Dimensions : 3.3 x 1.8 x 0.8cm

Shipping List

• Arduino Pro Mini 5V ATmega328P - Compatible with Arduino x 1

Good to know

• We are clear on what we sell. This is an open source Ardunio Uno clone. Since Arduino is Open Source, anyone can create compatible versions of the board and use the freely available development environment and many associated resources
