- Stock: Out Of Stock
- Model: CB-BMB-MBIT-37
- Weight: 125.00g
- Dimensions: 5.20cm x 4.20cm x 1.00cm
- SKU: VEE00037
- MPN: CB-BMB-MBIT-37
- Location: KA, India
More from this brand

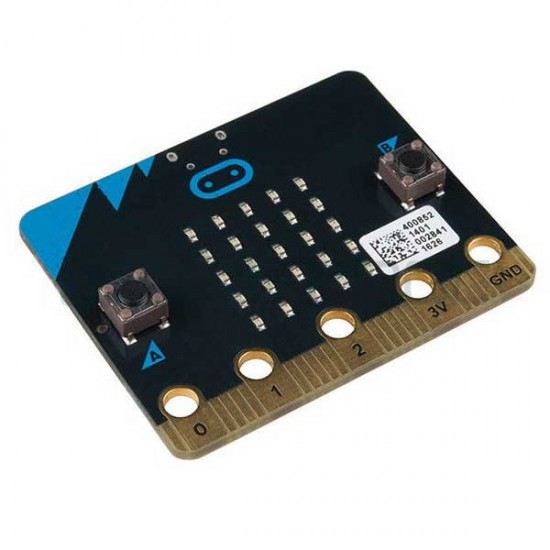

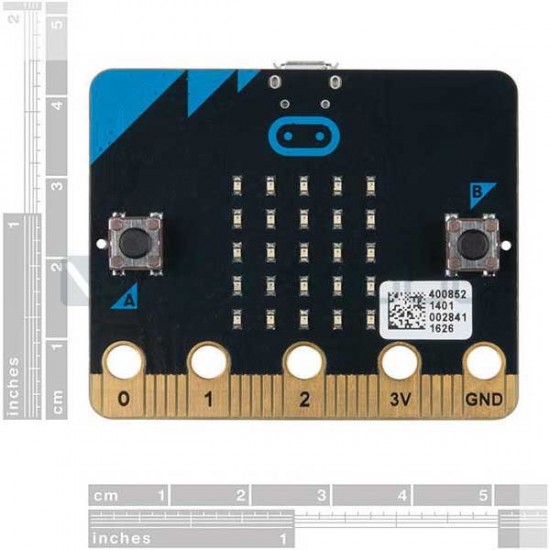

The Micro Bit or also referred to as BBC Micro Bit and stylishly written as micro:bit is an open source hardware ARM-based embedded system designed by the BBC for use in computer education. The compact micro:bit is about half the size of a credit card. Packed on this tiny board is a 16MHz Nordic nRF51822 microcontroller, with built-in 2.4GHz Bluetooth Low Energy (BLE) wireless networking capability, a temperature sensor, a 3-axis accelerometer, and a 3-axis magnetometer. A 5x5 LED array can be used as a light sensor, a tiny screen to draw on, or display words, numbers, and other information. Two programmable buttons and a reset button can be used to control games, send a radio message, or activate the display. A micro USB and two-pin JST connector allow for different power options.
On the bottom of the micro:bit board are 20 gold-tabbed edge pins and five ring connectors of which three for digital/analog I/O, two for power and ground, used for hooking up external components. The tabs with larger holes are alligator-clip friendly to for quick prototyping. Intuitive apps allow users to send code to the micro:bit using their mobile device, without using a USB cable, via Bluetooth. The micro:bit can be programmed using a variety of languages, including JavaScript, Microsoft BlockCode, MicroPython, and C++.
Specifications
- Nordic nRF51822 16MHz 32-bit Arm Cortex-M0 Microcontroller
- 256kB Flash, 16kB Static RAM, 2.4GHz Bluetooth Low Energy wireless networking
- NXP Semiconductors Kinetis KL26Z 48MHz 32-bit Arm Cortex-M0+ Core Microcontroller
- 128kB Flash, Integrated USB 2.0 On-The-Go (OTG) Controller and Low Voltage Regulator
- NXP Semiconductors MMA8652 3-axis Digital Accelerometer with I2C-bus
- NXP Semiconductors MAG3110 3-axis Digital Magnetometer with I2C-bus
- 23-pin edge connector
- Display consisting of 25 LEDs in a 5x5 array
- Two programmable push buttons
- Reset button
- 5 ring connectors (3x I/O, 1x 3V, 1x GND)
- 23-pin edge connector
- Micro USB connector
- Battery connector
- Weight : 37g
- Dimensions : 5.2 x 4.3 x 0.08cm
Shipping List
- BBC Micro:bit Pocket Sized Single Board Computer x 1
Good to know
- Micro bit website has full of coding examples, languages compatible, lesson plans, tutorials, and fun ideas to help program the micro bit. This tiny board has tons of usages and all you need is the patience to learn
