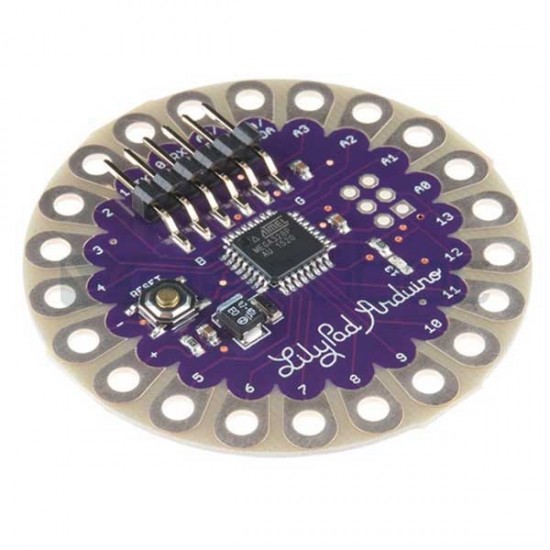

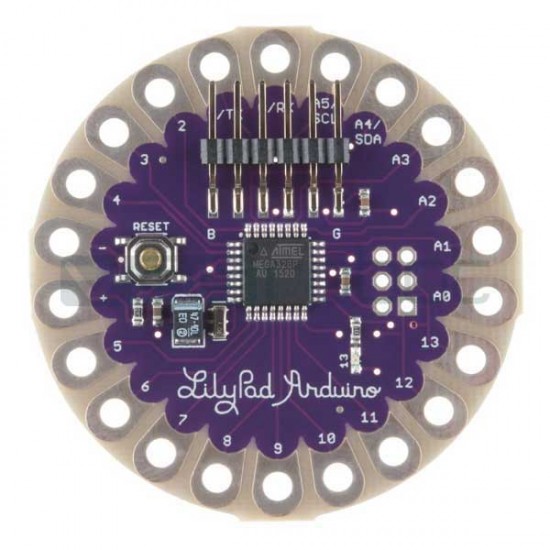

LilyPad ATmega328P Board - Compatible with Arduino

The Lilypad ATMega328P Board is an arduino compatible microcontroller board which can be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design. With wide tabs that can be sewed to your wearables using a conductive thread. This is fully compatible with the Arduino software and has complete hardware compatibility to the original Lilypad.
The LilyPad consists of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small as possible. This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).
You may easily program this compatible boards using the Arduino platform for rapid application development using Processing language, which is a derivative of C. If you are already familiar with Arduino Uno and if the pinouts, or memory of Uno is limited for your requirements, then this is a bigger and better brother of Uno.

Specifications

• Based on ATMega328P
• Input Voltage : 2.7-5.5 V
• DC Current per I/O Pin : 40mA
• Flash Memory : 16 KB
• SRAM : 1 KB
• EEPROM : 512 Bytes
• Clock Speed : 8 MHz
• Digital Pins : 14
• Weight : 37g
• Dimensions : 5 x 5 x 0.08cm

Shipping List

• LilyPad ATmega328P Board - Compatible with Arduino x 1

Good to know

• This board is not breadboard compatible and the pins cannot be used with normal jumper wires unlike other Arduino boards. But again, these are not designed to be used like that. Secondly, We are clear on what we sell. This is an open source Lilypad clone. Since Arduino is Open Source, anyone can create compatible versions of the board and use the freely available development environment and many associated resources
