2WD - Two Wheel Drive Double Decker Robot Chassis

Do you want to explore the field of robotics and autonomous robot experimentation, but don't know where to start? VEEROBOT double decker 2 wheel drive chassis is created just for you. This is a simple and inexpensive platform for learning robotics, microcontroller programming, electronics and sensor integration. The DIY chassis contains all the components required to build a small, high performance robot platform in no time. Add electronics and you are ready to go.

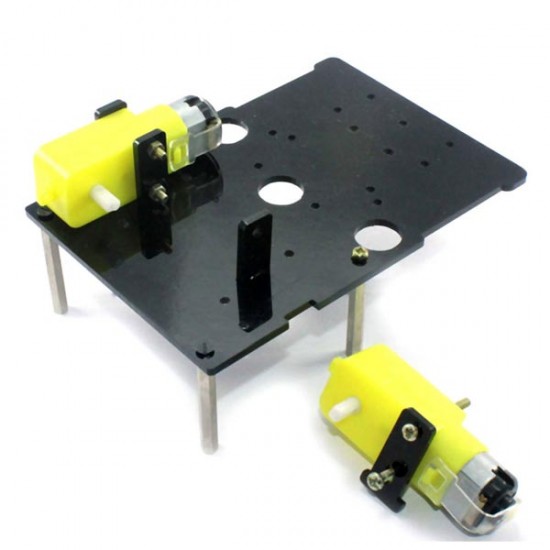

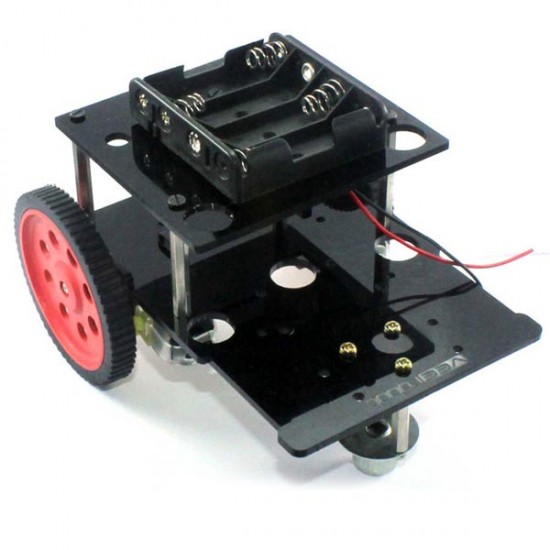

The main body of the chassis is made of two layer Laser-Cut Clear-Acrylic sheet and can hold two gear motors on either sides. The chassis has enough holes and openings for mounting battery holder, Motor Drivers, and also an arduino board. The design is such that the wires can be neatly hidden under the modules and top deck. This kit can be used to build a robot for distance sensing, Obstacle Avoidance, Line follower, Flame Detector, Speed Tester, Wireless remote controlled Car, and any other creative works you can think of.

NOTE: The kit requires assembling and you may need an additional screwdriver to set the screws and nuts together. Remember, the fun begins with assembling :) Also, the chassis may have a layer of protective paper on both sides. You may either choose to remove and assemble it, or leave it as is.

Features

• Laser Cut Acrylic Chassis to enhance creativity & innovation
• Two 60 RPM motors - Useful for Line following Robot
• High Quality Wheels & Motors
• Double Decker Design for easy change of batteries
• M3 holes for Motor Driver, Arduino Board and additional sensors
• Brackets, screws and nuts included

Specifications

• Robot Type : Two Wheel Drive Double Decker Robot Chassis
• Compatible Motor Driver : L298 Motor Driver Module
• Motors : 60RPM High Torque Motors
• Wheels : 70mm x 8mm Plastic wheels with rubber tires
• Chassis : 3mm Thickness Laser cut Night Black chassis
• Holes and Slots : Control Board, Motor Driver, Battery Holder, Sonar, Servos etc.
• Weight : 300g
• Dimensions : 16 x 11 x 12cm

Shipping List

• 2WD - Two Wheel Drive Double Decker Robot Chassis x 1
