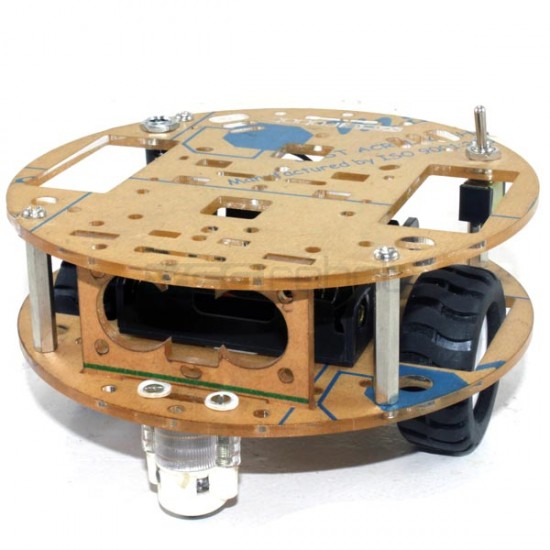

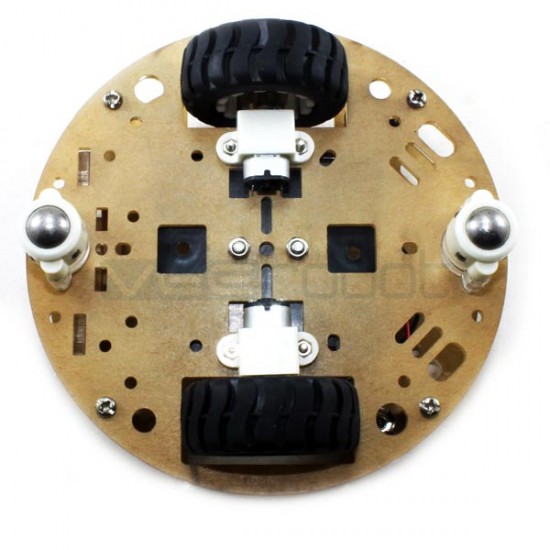

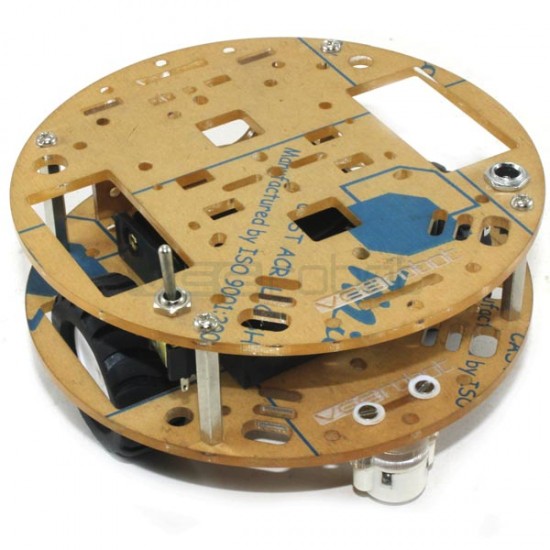

2WD Chassis with N20 Metal Gear Motors - Clear Acrylic - Round

VEEROBOT 2WD Chassis with N20 Metal Gear Motors is a 5 inch light weight robot chassis with 3mm acrylic plates that provides a base for N20 micro metal gearmotors, extended brackets, and 43×19mm wheels. The front and back has two castor wheels for balancing. The robot chassis has many mounting holes that let you mount a variety of robot components to it. With a diameter of only five inches, this acrylic chassis is great for building robots capable of navigating tight spaces.
There is an additional connecting acrylic plate which helps connect an ultrasonic sensor in between the two plates. This chassis can be used to design line follower robot, obstacle avoidance robot, wired and wireless robots, Wall hugging robot, Maze solving mouse etc.

Features

• Strong 3mm transparent acrylic body parts
• 4 X AA battery holder included
• Compatible with Arduino, VEEROBOT Boards
• Compatible with different Motor control boards including L293D and L298 boards
• Ultrasonic holder in between the plates for constructing obstacle avoidance robots
• Kit include all necessary parts to build the chassis
• Same top and bottom plates so that components and modules can be connected on either plates
• Additional acrylic Castor plates to increase ground clearance

Specifications

• N20 Metal gear motors on either side - 300 RPM
• Operating Voltage : 3v - 9v
• 43mmx19mm Wheels for extended traction
• 4AA Battery holder (does not include batteries)
• Power switch and charging socket if using chargable lipo batteries
• No Load current : 0.06A per motor
• Stall Current : 0.75A per motor max.

Shipping List - 2WD Chassis with N20 Metal Gear Motors - Clear Acrylic - Round

• 3mm - 5inch Transparent Acrylic Plates x 2
• 4AA Battery Holder x 1
• N20 Metal Gear Motors x 2
• Balancing Castor Wheels x 2
• Toggle Switch x 1
• Charging Socket x 1
• 43mm Wheels x 2
• Ultrasonic Sensor Holder x 1
• 30mm Spacers x 4
• Castor Plates for ground clearnace x 8
• Required Screws and Nuts
• Dimensions : Chassis 5in Dia, Height : 2.5inch
