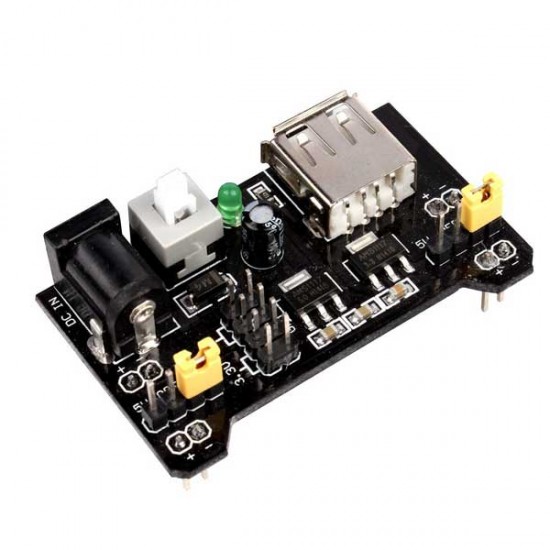

3.3V/5V Breadboard Power Supply

This is a 3.3V/5V breadboard power supply module which provides a dual 5V and 3.3V power rails and has a multi-purpose female USB socket. This Power Supply Module securely fits in any standard 400 or 800 tie points breadboard also features reverse polarity protection, the module can take 6.5V to 12V input and can produce 3.3V and +5V. The module can also output 5V on USB connector or input through the USB connector. It's a must-have product for experimenters who need to test/prototype electronic circuits on the breadboard.

Features

• Designed to fit the standard MB102 bread board
• Power Supply comes with On/Off Switch
• Green LED power indication
• Built-in protection against short-circuit through power limiting circuitry
• Compatible with 5V, 3.3V
• Input Voltage :6.5-12V (DC) or USB power
• Output voltage: 3.3V, 5V switchable
• Maximum Output Current: <700ma
• Two way independent control
• Output VoltageCan be switched to 0V, 3.3V, 5V
• On-board Two sets of 3.3V, 5V DC output pins, lets you connect directly to external circuits and to multiple breadboards.

Specifications

• Input Voltage :6.5-12V (DC) or USB power
• Output voltage: 3.3V, 5V switchable
• Maximum Output Current: <700ma
• Two way independent control
• Can be switched to 0V, 3.3V, 5V
• On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads

Shipping List

• 3.3V/5V Breadboard Power Supply x 1 x 1
