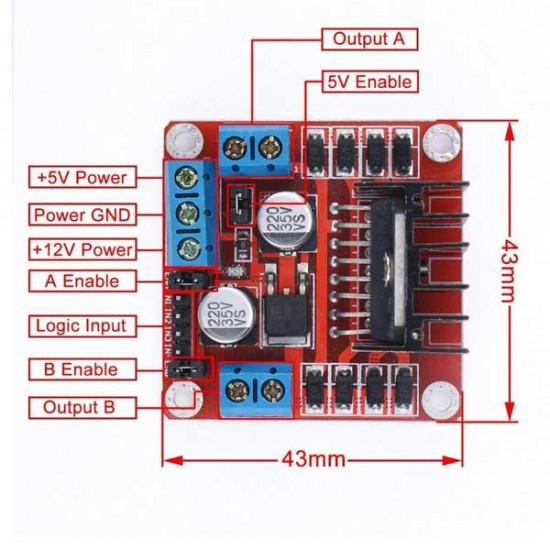

L298 Motor Driver

L298 based Motor Driver module is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L298 motor driver IC and an onboard 5V regulator which can supply 5v to an external circuit. The module can control up to 4 DC motors without direction and speed control, or 2 DC motors with directional and speed control. However, the best setup is generally to control 2 DC motors in robots.
This motor driver is perfect for robotics and mechatronics projects and for controlling motors from microcontrollers, switches, relays for micro mouse, line following robots, robot arms and other applications. The board is controlled by PWM (Pulse Width Modulation) and can be used to drive current in either polarity

Features

• Current Sense for each motor
• Attached Heatsink for better performance
• Power-On LED indicator
• Control upto 4 motors or 2 motors with direction and speed control
• Big terminal block connectors to easily hook up wires and power
• 2-pin terminal block and jumper to connect external power
• Compatible with any microcontroller with digital output and PWM output for PWM features

Specifications

• Driver chip: L298 dual H-bridge driver chip
• Operates up to 35V DC
• Drive part of the peak current Io: 2A / Bridge
• Logical part of the terminal power supply range Vss :4.5V-5.5V
• Logical part of the operating current range: 0 ~ 36mA
• Maximum power consumption: 20W

Shipping List

• L298 Motor Driver x 1

Good to Know

• Make sure you have all of your grounds tied together; Arduino, Power source, and the Motor Controller. The PWM Pins are unnecessary if you do not want to control PWM features
