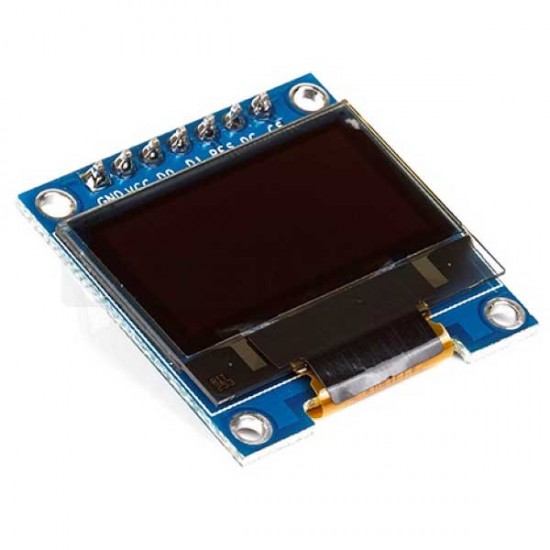

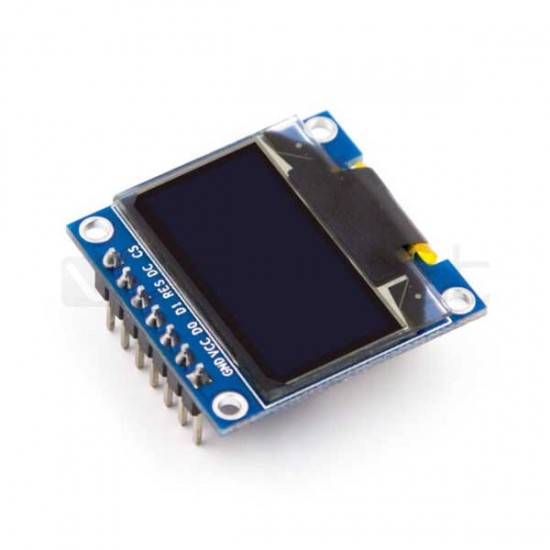

OLED SPI Display - 0.96 inch

This 0.96 inch OLED display module can be interfaced with any microcontroller with SPI/IIC pins. The display has a resolution of 128x64 and comes with 6 pin male header presoldered to board.
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays.
The 0.96″ OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The Module also offers a very wide viewing angle of about greater than 160°.

Features

• Operating Voltages : 2.5V – 5.5V.PAM 8403 audio Amplifier board
• Current capacity : 8 mA PAM 8403 audio Amplifier board
• Efficiency : 87 % PAM 8403 audio Amplifier board
• Amplifier IC: PAM 8403 audio Amplifier board
• Load : Can direct drive 4 or 8 ohm small speakers PAM 8403 audio Amplifier board
• Max Gain : 24 dB
• Signal to Noise ratio : 80 dB
• Power supply Rejection ratio : -58 dB
• Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load)
• Good sound quality
• Double panel wiring solves crosstalk
• Super mini design allows it to be easily placed in a variety of digital products
• 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply
• Filterless, Low Quiescent Current and Low EMI
• Superior Low Noise
• Short Circuit Protection
• Thermal Shutdown

Specifications

• Both SPI and I2C/IIC compatible
• Only Need 2 I/O Port Control
• Factory configured for SPI protocol
• Full Compatible with Arduino
• Lower power requirement than LCD and LED displays
• Black background with blue text
• Dimensions : 27 x 27 x 4 mm

Shipping List

• OLED SPI Display - 0.96 inch x 1
