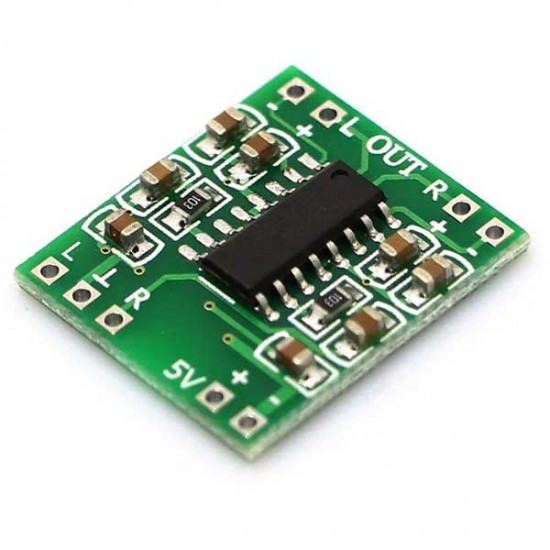

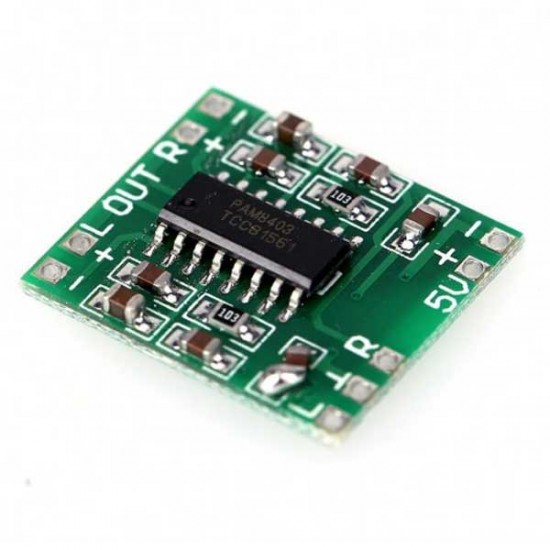

PAM8403 Stereo Audio Amplifier Module

PAM8403 module is a 5V Two-channel Stereo, 3W+3W, class-D audio amplifier which achieves high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB modules. It can extend the battery life, which makes it well-suited for portable applications.

Features

• Operating Voltages : 2.5V – 5.5V.PAM 8403 audio Amplifier board
• Current capacity : 8 mA PAM 8403 audio Amplifier board
• Efficiency : 87 % PAM 8403 audio Amplifier board
• Amplifier IC: PAM 8403 audio Amplifier board
• Load : Can direct drive 4 or 8 ohm small speakers PAM 8403 audio Amplifier board
• Max Gain : 24 dB
• Signal to Noise ratio : 80 dB
• Power supply Rejection ratio : -58 dB
• Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load)
• Good sound quality
• Double panel wiring solves crosstalk
• Super mini design allows it to be easily placed in a variety of digital products
• 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply
• Filterless, Low Quiescent Current and Low EMI
• Superior Low Noise
• Short Circuit Protection
• Thermal Shutdown

Specifications

• Dual channel stereo output 3 w + 3 w power Class D
• Works with 2.5V-5v power supply
• High amplification efficiency 85%
• Can directly drive 4 Ω/8 Ω small speakers
• Unique without LC filter class D digital power board
• Can use computer USB power supply directly
• Dimensions : 21 x 18 x 3 mm

Shipping List

• PAM8403 Stereo Audio Amplifier Module x 1

Good to Know

• When using the board, make sure that the input audio is via a sheilded wire for best performance. Use proper filtered power supply with good filter capacitors. Take care not to short speaker wires and lastly, make use regulated power supply to make sure power supply does not exceed 5.5V
