Prototyping Expansion Shield with Mini Breadboard

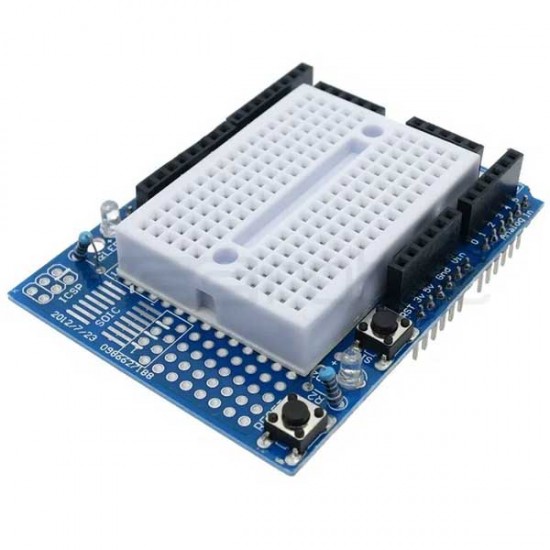

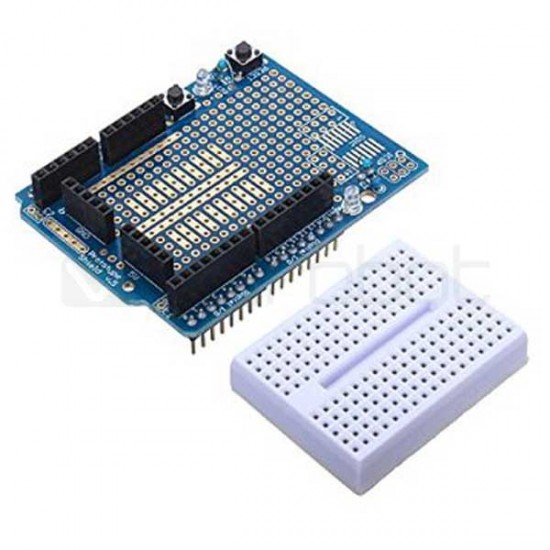

This shield is designed for Arduino Uno and similar variation boards is a prototype expansion board used to build prototype circuits. The components can either be directly soldered on the board or can connect the circuit above the mini breadboard. An adhesive double sided tape on the breadboard is used to mount it over the circuit board which are separate when sold.
The UNO Proto Shield prototype expansion board with SYB-170 mini breadboard makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard to quickly test circuit ideas without having to solder.
It's got extra connections for all of the Arduino I/O pins, and space to mount through-hole and surface mount integrated circuits. A convenient way to make your custom circuit and Arduino into a single module.
This shield has two built-in buttons and two LED that can be used directly.

Features

• Standard 0.1"" prototyping grid with big pads
• An IC pattern for adding DIP ICs up to 20 pins
• Power rails in the middle and sides
• A reset button and an extra button for custom usage
• Two 3mm LEDs with resistors, red and green
• A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
• A surface-mount chip area for up to 14 SOIC size parts
• Compatible with tiny breadboards
• Every GPIO pin is pulled out
• 2 x 0.1uF capacitors on either side for extra power stability

Specifications

• Standard 0.1″ prototyping grid
• IC pattern for adding DIP ICs up to 20 pins
• Reset button and an extra general use button
• Two 3mm LEDs with matching resistors
• Dimensions : 90 x 50 x 20mm

Shipping List

• Prototyping Expansion Shield with Mini Breadboard x 1
