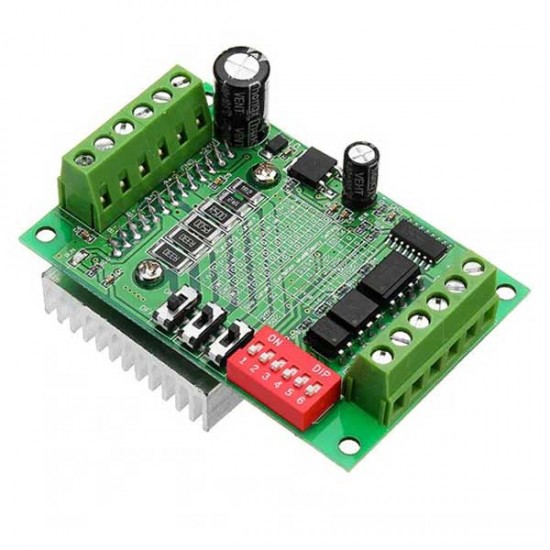

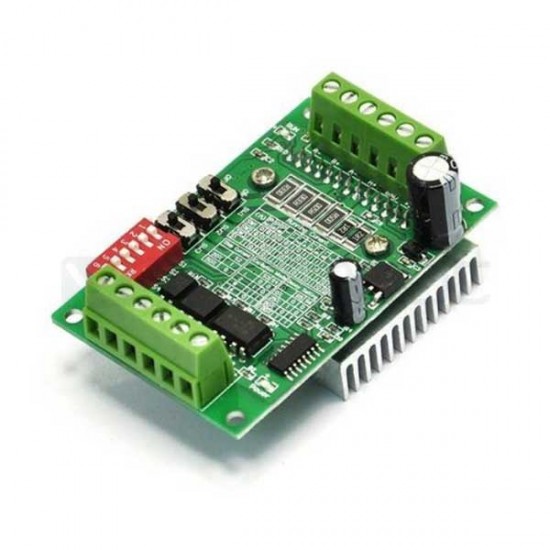

TB6560 Stepper Motor Driver Board 3A

This is a Single Axis 3A Stepper Motor driver board designed for CNC router axis control with Input signal, high-speed opto-coupler isolation and a large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.

Features

• Attenuation model adjusted for all the motors can be locked when no noise
• Working voltage: DC 10V-35V.Recommend Switching Power Supply DC24V
• 6N137 high-speed Opto-Coupler , to ensure a high speed without step out
• Operating voltage :DC 10V-35V
• For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor
• The Automatic half-decay adjustable
• Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments
• Very easy to use, no instructions, all of use are marked on the board
• With large heat sink to ensure good heat dissipation
• Input signal high-speed opto-coupler isolation, guarantee not losing steps
• Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
• Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance
• Rated output: ± 3A, peak 3.5A
• Adjustable current level to meet your various application needs
• Thick tooth radiators, good heat dissipation
• Dimensions : 50 x 75 x 35 ( MM)

Specifications

• Operating voltage :DC 10V-35V
• Semi-flow mode adjustable, semi-flow current adjustable
• Working voltage: DC 10V-35V
• Rated output: ± 3A, Peak 3.5A.
• Dimensions : 50 x 75 x 35 mm

Shipping List

• TB6560 Stepper Motor Driver Board 3A x 1
