Name: Digital Sound sensor Microphone module
Brand: VEEROBOT
SKU: VEE00110
Price: 99.00 INR
Availability: InStock

Digital Sound sensor Microphone module

Stock: In Stock
Model: SEN-SNS-SNDS-110
Weight: 40.00g
Dimensions: 3.20cm x 2.40cm x 1.80cm
SKU: VEE00110
MPN: SEN-SNS-SNDS-110
Location: KA, India

VEEROBOT

>10 Units sold

Product Views: 5875

Based on 0 reviews.-Write a review

Rs99.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

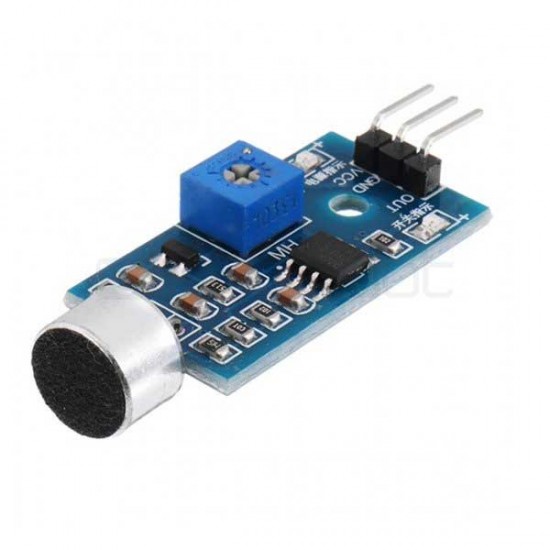

Sound detection sensor module for arduino detects whether sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op amp. The sound level set point is adjusted via an on board potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.

Specifications

0.1" breadboard friendly pins
Operating voltage 3.3V-5V
Operating current (Vcc 5V): 4-8mA
Microphone sensitivity (1Khz): 52-48dB
Microphone Impedance: 2.2KΩ
Outputs low level and the signal light when there is sound

Shipping List

Digital Sound sensor Microphone module x 1

Good to Know

This is a digital sound sensor and you do not get analog output from these modules
