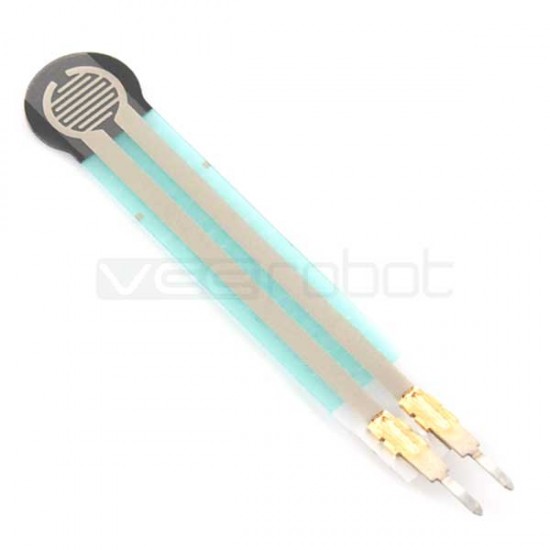

Name: Force or Pressure Sensing Sensor - 5.08mm
Brand: VEEROBOT
SKU: VEE00222
Price: 575.00 INR
Availability: InStock

Force or Pressure Sensing Sensor - 5.08mm

Force or Pressure Sensing Sensor - 5.08mm

Stock: In Stock
Model: CMP-SNR-FORS-222
Weight: 5.00g
Dimensions: 5.50cm x 1.00cm x 0.10cm
SKU: VEE00222
MPN: CMP-SNR-FORS-222
Location: KA, India

VEEROBOT

>10 Units sold

Product Views: 4447

Based on 0 reviews.-Write a review

Rs575.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

This force sensitive resistor (FSR) will vary its resistance depending on how much pressure is being applied on the sensing area. The harder the force, the lower the resistance. When no pressure is being applied, its resistance will be larger than 1MΩ, with full pressure applied the resistance will be approximately 2.5kΩ.
The sensor can be connected to any microcontroller using the two extended pins on the bottom of the sensor. It is also breadboard friendly with 0.1″ pitch. The sensor has varied applications in Testing and measuring equipments.

Specifications

Ultra-thin: 0.45 mm
Sensing dimension : 5.08mm
Easily customizable to a wide range of sizes
Lifespan: up to 10 million actuations
Flat Resistance: 10K Ohms ±30%.
Simple and easy to Integrate.

Shipping List

Force or Pressure Sensing Sensor x 1

Good to Know

The sensor is fragile. Use caution when applying pressure
FSR's are not really accurate, but you can use it for most applications
The connectors are fragile. Make sure you take atmost care while pushing it into breadboard holes
