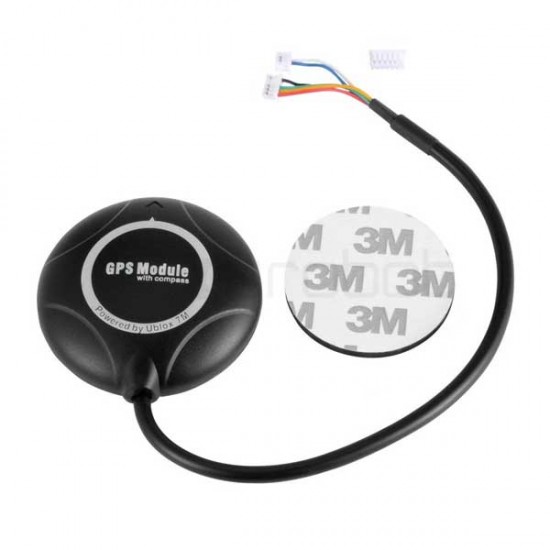

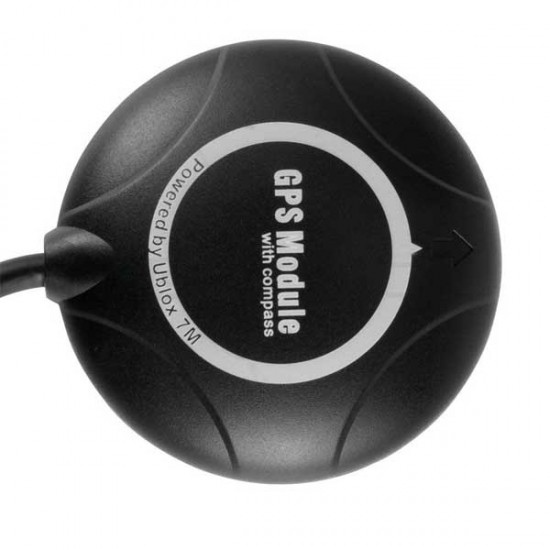

GPS Module Ublox NEO-7M With Electronic Compass

Ublox Neo 7M GPS module is your best and inexpensive option for APM and Pixhawk flight controllers. The module also includes an HMC5883L digital compass. Ublox NEO 7 series is a high sensitivity, low power GPS module that has 56 channels and outputs precise position updates at 10Hz. This GPS module comes with a molded plastic case which keeps the module protected against crashes making it ideal for use on your aircraft or multirotor.
This Ublox Neo 7M GPS module uses an active circuitry ceramic patch antenna to provide excellent GPS signal which outperforms the older Ublox Neo 6 series modules with EEPROM to store the configuration settings. Out of the box this GPS module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems. The pack comes with two connectors, a 6 pin connector for the GPS module and a 4 pin connector for the i2c compass.

Specifications

• Tracking sensitivity: 161 dBm
• Capture sensitivity : 148 dBm
• Start time: 1s-38s average (hot to cold)
• Capture time: 0.1s Average
• Output GGA, GSA and RMC frames
• Compass built-in

Shipping List

• GPS Module Ublox NEO-7M With Electronic Compass x 1
