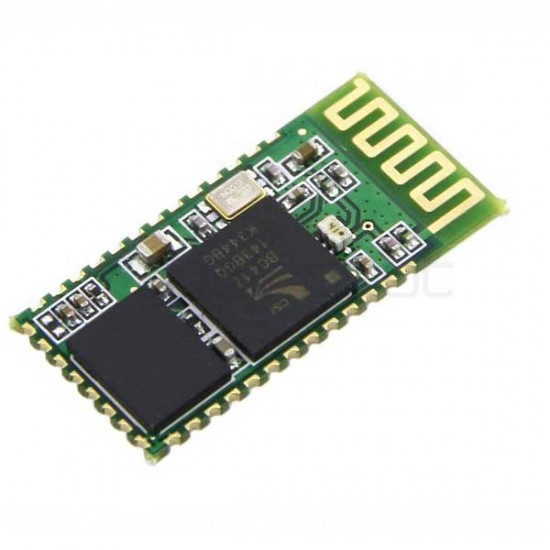

HC-05 Wireless Bluetooth RF Transceiver Module - SMD

HC-05 Wireless Serial Bluetooth Module is uses the UART protocol to make it easy to send and receive data wirelessly using bluetooth communication. This module comes without a baseplate and can be implemented onto other boards which require bluetooth slave connectivity. This means that it can connect to most phones and computers with Bluetooth connections.

Specifications

• Can be soldered directly onto other boards - Edge Connectors
• Operating Voltage : 3.6v and Emission power: 4dBm, Class 2
• Default serial port setting : 9600, N, 8, 1
• Running in slave role: Pair with BT dongle and master module
• Sensitivity: -84dBm at 0.1% BER
• Up to +4dBm RF transmit power with integrated antenna
• UART interface with programmable baud rate
• Supports 9600, 19200, 38400, 57600, 115200, 230400, 460800 baud

Shipping List

• HC-05 Wireless Bluetooth RF Transceiver Module - SMD x 1

Good to Know

• Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and basebandand Modulation is GFSK(Gaussian Frequency Shift Keying). Pairing code of these modules are ""1234""
