Reed Switch Sensor Module (Magentic Switch)

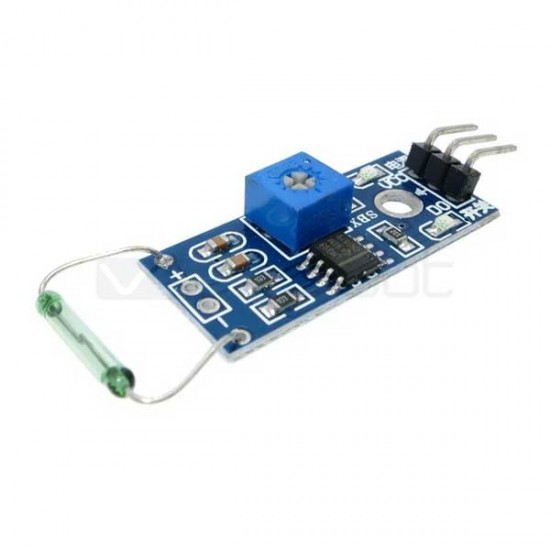

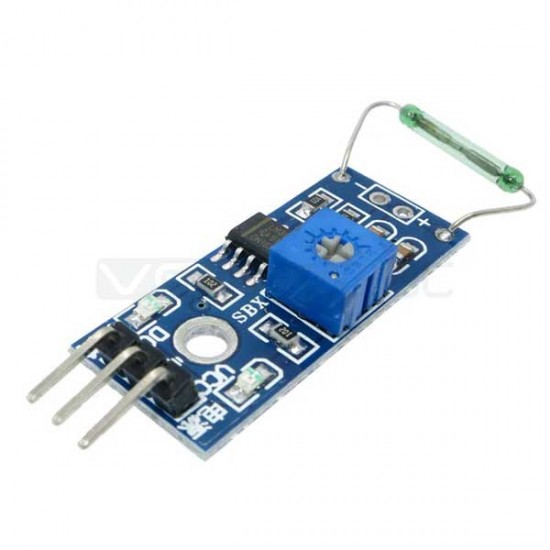

Reed Switch Module (KY-025) is a small electrical switch operated by an applied magnetic field, commonly used as proximity sensor. The module has both digital and analog outputs. A trimmer is used to calibrate the sensitivity of the sensor. The switch is normally open and the output of the switch is fed into a LM393 dual differential comparator which outputs a digital voltage. The module is used in a variety of applications like control switches, copiers, washing machines, cameras, refrigerators, cabinets, door, window panes, electromagnetic relays, electronic weighing, level meter, etc.

Specifications

• 0.1" breadboard friendly pins
• Operating Voltage : 3.3-5V
• Two led indicators for power and digital signal
• Clean, good waveform driving ability with output equal to or more than 15mA
• Output format: Digital (0 or 1)
• Dimension: Approx. 15x36mm

Shipping List

• Reed Switch Sensor Module (Magentic Switch) x 1

Good to Know

• The sensor outputs a digital value controlled by the pot as either 0 or 1
