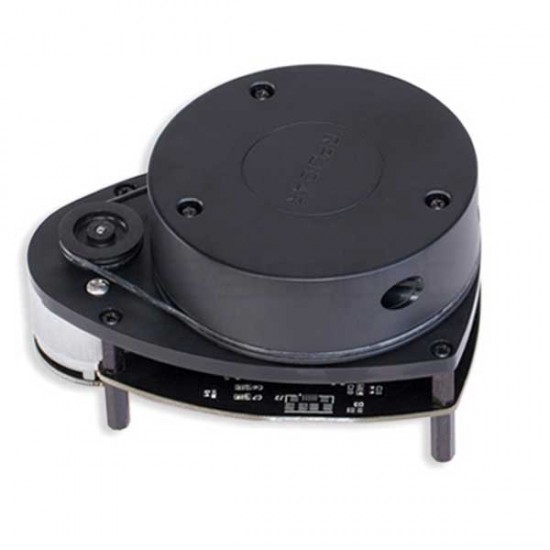

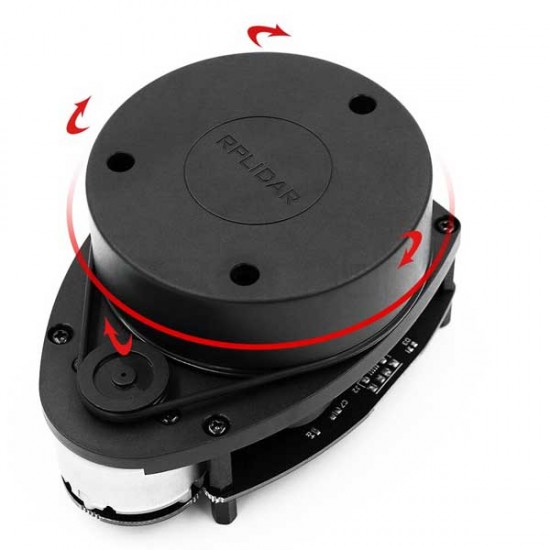

RPLIDAR A1 is a low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform 360 degree scan within 6 meter range. The 2D point cloud data generated from RPLIDAR can be used in mapping, localization and object/environment modeling.
RPLIDAR A1's scanning frequency reaches 5.5Hz when sampling 360 points each round. And it can be configured up to a maximum of 10Hz. This Lidar is basically a laser triangulation measurement system which can work excellent in all kinds of indoor environment and outdoor environment without sunlight.
Some of the applications of this RPLIDAR are:
- Home service / cleaning robot navigation and localization
- Environment scanning and 3D re-modeling
- General robot navigation and localization
- General simultaneous localization and mapping (SLAM)
- Smart toy's localization and obstacle avoidance
Features
- 360 Degree Omnidirectional Laser Range Scanning
- Measures distance data in more than 8000 times/s
- 8000 times sample rate,the highest in the current economical LIDAR industry
- OPTMAG Original Design,prolong the life-span
- Ideal for Robot Navigation and Localization
- Configurable Scan Rate from 2-10Hz
- Plug and Play
Specifications
- USB and Communication cable included
- Operating Voltage : 5v
- Distance / Angular Range : 0.15 - 6m / 0-360 Degree
- Distance / Angular Resolution : <0.5mm / Resolution : ≤1Degree
- Sample Duration : 0.5ms; Sample Frequency : 2000~2010Hz
- Scan Rate : 1~10Hz, Typical 5.5Hz
- Dimensions (Approx) : 98.5mm x70mm x60mm
Shipping List
- RPLIDAR-A1 360 Degree Laser Range Scanner x 1
- USB Adapter x 1
- RPLIDAR A1 communication cable x 1
Good to Know
- Sunlight may affect these modules and if you are planning to use these modules outdoors in the Sun, test it well outdoors since the results indoors and outdoors can greatly vary
