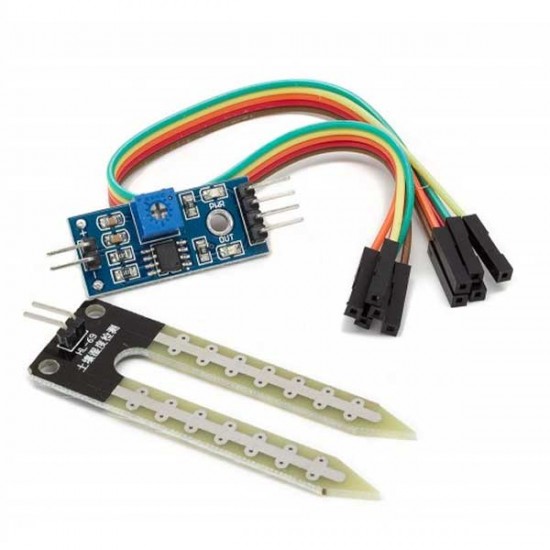

Soil Moisture Sensor Module - Resistive

Soil Moisture Sensor is a simple breakout for measuring the moisture in soil and similar materials. The soil moisture sensor is pretty straight forward to use. The two large exposed pads function as probes for the sensor, together acting as a variable resistor. The more water that is in the soil means the better the conductivity between the pads will be and will result in a lower resistance, and a higher output.
The sensor includes a potentiometer to set the desired moisture threshold. When the sensor measures more moisture than the set threshold, the digital output goes high and an LED indicates the output. When the moisture in the soil is less than the set threshold, the output remains low. The digital output can be connected to a micro controller to sense the moisture level. The sensor also outputs an analog output which can be connected to the ADC of a micro controller to get the exact moisture level in the soil or similar materials. This sensor is great for making water gardening projects, water sensing, etc.

Specifications

• 0.1" breadboard friendly pins
• Operating Voltage : 3.0 ~ 5V
• Dual output mode - Analog and digital
• Built-in power indicator LED and digital switching output indicator
• Built in 10k resistor
• Cable Length: Approx. 21cm
• Panel PCB Dimension: Approx. 30 x 15mm
• Soil Probe Dimension: Approx. 60 x 30mm

Shipping List

• Soil Moisture Sensor Module - Resistive x 1

Good to Know

• The sensor outputs a digital value controlled by the pot as either 0 or 1. For greater accuracy and control, connect the analog output of this sensor to an analog input compatible microcontroller like an arduino
