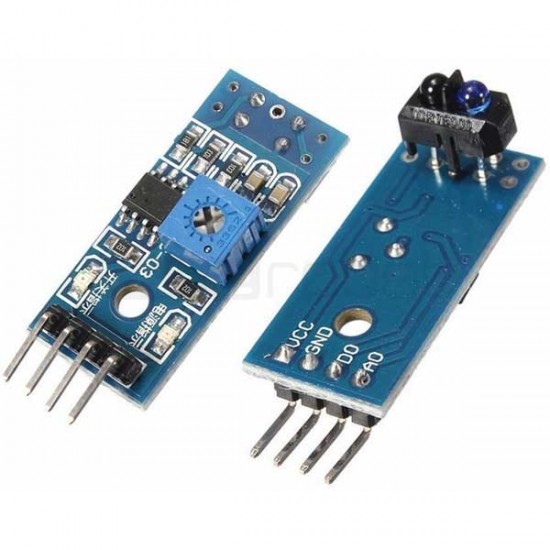

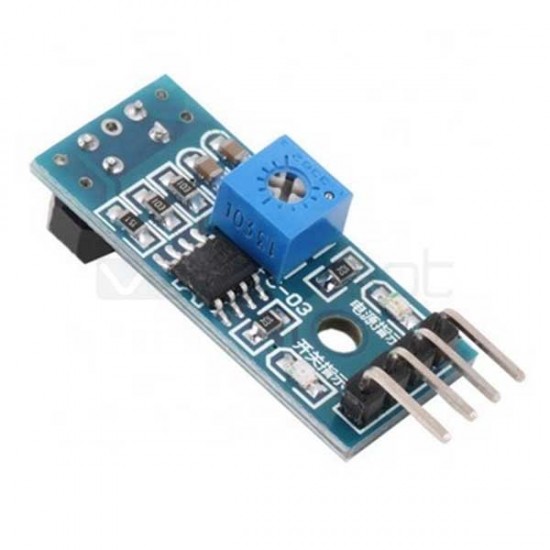

TCRT5000 Infrared Reflective Line Follower Module

This is a dual-output line Tracking sensor module based on IR Sensor TCRT5000L. The module has a sensitivity adjustment Pot, LED indicator for Power, and an LED indicator for detection. These Modules are often used in line following robots, object sorting Robots as the module can sense if a surface is white or black. The measuring distance range is between 1mm to 8mm and the ideal point is about 2.5mm-3mm. TCRT5000 module can be easily mounted to Robot Chassis using mounting hole. Some of the applications of this module include : Meter pulse data sampling, Paper shredders detection, Obstacle detection, Black and white line detection etc.

Features

• Designed with the reflected infrared sensor and has an indicator light
• Built in a potentiometer for sensitivity adjustment
• On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000
• Has an onboard signal output indicator
• Signal detection sensitivity can be adjusted
• Dual Output : Digital output (0 and 1) or Analog output for more control
• A M3 hole for convenient installation

Specifications

• 0.1"" breadboard friendly pins
• Operating Voltage : 3.3v-5v
• Operating Current : 15mA
• Optimal Sensing Distance: 3mm
• Designed with the reflected infrared sensor, indicator light
• Built in a potentiometer for sensitivity control
• On-board LM393 voltage comparator chip and TCRT5000L module
• Dimensions (Approx) : 32mm x 14mm

Shipping List

• TCRT5000 Infrared Reflective Line Follower Module x 1

Good to Know

• Sunlight greatly affects these modules and if you are planning to use these modules outdoors in the Sun, test it well outdoors since the results indoors and outdoors can greatly vary
