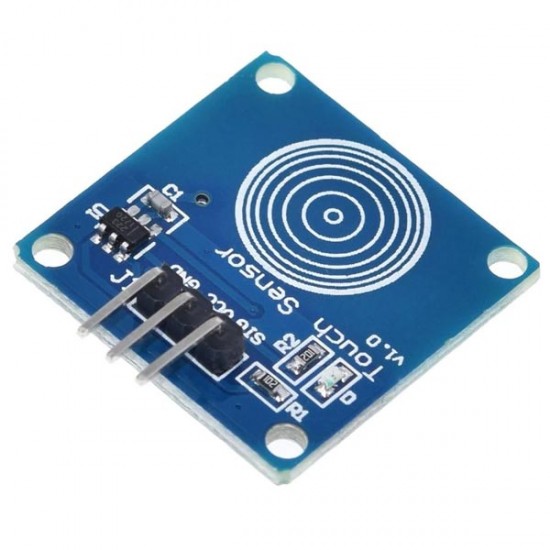

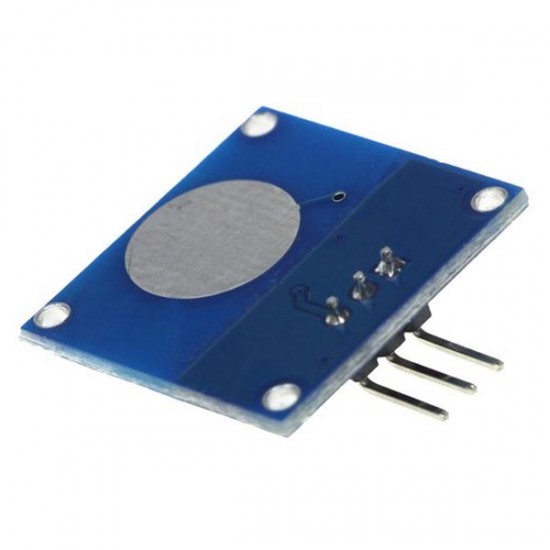

Digital Sensor TTP223B Module Capacitive Touch Switch

Digital Capacitive Touch Switch Module is based on TTP223B. Normally, it outputs low and keeps at low power state. When a touch is sensed on the circular marked region, it outputs high and switch to the quick response state. When not being touched for 12 seconds, it switches to low power state again. If the module is mounted in the surfaces of non-metallic materials such as plastic, glass, acrylic, you can make the keys hidden in the walls and desks.

As long as you take care of the correct location of the touch, you can hide the module behind walls, desktops and other locations.

Specifications

• Power supply voltage(VCC): 2.0, 3, 5.5 V.
• Output high VOH: 0.8VCC V
• Output low VOL: 0.3VCC V
• Response time (touch mode) : 60 mS
• Response time (low power mode) : 220 mS
• Can replace the traditional touch of a button
• Four M2 screws positioning holes for easy installation
• Module Size: 2.6 x 2.3 x 0.5 cm

Shipping List

• Digital Sensor TTP223B Module Capacitive Touch Switch x 1

Good to Know

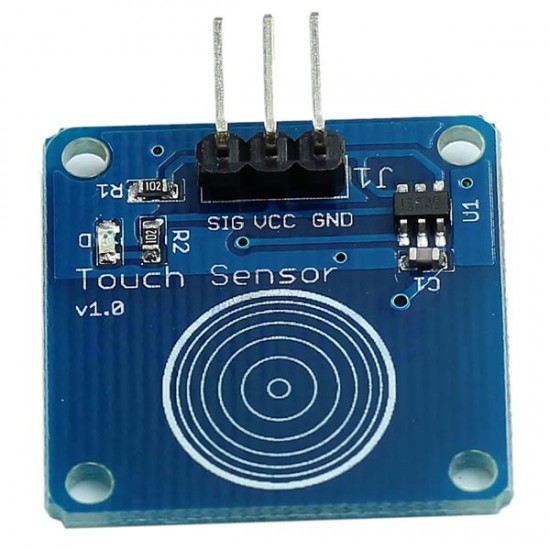

Touch Sensor Interface

• Control Interface: A total of three pins (GND, VCC, SIG), GND to the ground, VCC is the power supply, SIG digital signal output pin
• Power Indicator: Green LED, power on the right that is shiny
• Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger
• Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination
