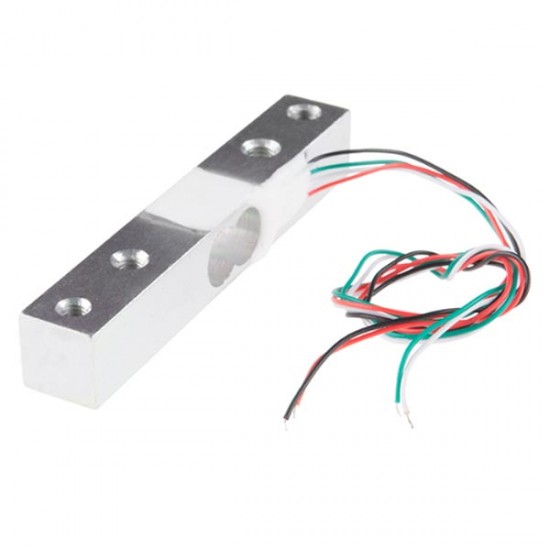

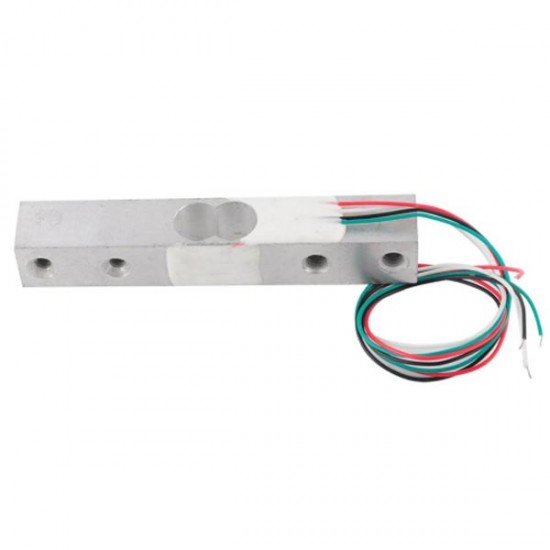

Weighing Load Cell Sensor 5kg YZC-131 With Wires

This Weighing Load Cell Sensor (YZC-131) With Wires is also known as strain gauge can translate up to 5 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain or pressure or force applied to the bar.

With this gauge, you will be able to tell just how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight

It has Four lead wires which can be connected to our HX711 Load Cell Amplifier Module. It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

Installation of the Sensor is also simple. The loads cells one end should be fixed through the screw hole and the other end left floating. The label indicates the direction of the gravitational force exerted. Make sure the force is not applied on the white plastic like thing which would damage the sensor.

Specifications

• Working voltage : 5v-10v
• Model: YZC-131A
• Cable Length: 18 cm
• Range: 5 kg
• Rated output: 1.0 0.1mV / V
• Dimensions: 7.5 x 1.27 x 1.27 cm

Shipping List

• Weighing Load Cell Sensor 5kg YZC-131 With Wires x 1
