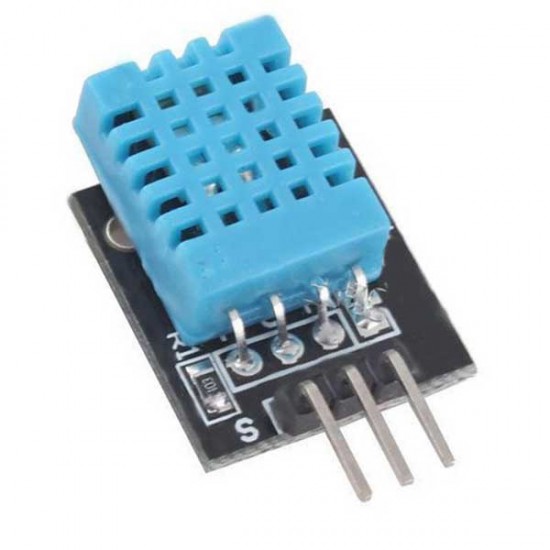

Temperature and Humidity Sensor Module - DHT11

This module consist of a pre-calibrated DHT11 digital humidity and temperature sensor and a 1 kΩ resistor. The DHT11 uses an internal thermistor and a capacitive humidity sensor to determine environment conditions and outputs a serial digital signal. The module has a resistive sense technology coupled with NTC thermistor, for the precise reading of the relative Humidity and surrounding temperature. A high-performance 8-Bit microcontroller inside the module is responsible to convert in the form of a digital signal on a single data pin. The sensing update frequency is to be measured at every 2sec (0.5Hz).
This complete low-cost arrangement makes the device an ideal sensing setup to be hooked up directly to any kind of microcontroller boards like Arduino and raspberry pi.

Specifications

• 0.1" breadboard friendly pins
• Operating voltage : 3.3 ~ 5.5V.
• Operating current (Vcc 5V): 4-8mA
• Humidity measurement range / accuracy : 20% to 90% RH / ±5% RH
• Humidity measurement resolution 1% RH
• Temperature measurement range / Accuracy : 0ºC to 50ºC [32ºF to 122ºF] / ±2ºC
• Temperature measurement resolution : 1ºC

Shipping List

• Temperature and Humidity Sensor Module - DHT11 x 1

Good to Know

• The module is not as precise as a DHT22 module. However when you compare a cost to performance ratio, this is a good low cost temperature and humidity sensor module
