Name: Battery Charge Protection Module 3S 10A for 18650 Lithium Ion Battery - 11.1V - with protection
Brand: VEEROBOT
SKU: VEE00240
Price: 189.00 INR
Availability: InStock

Battery Charge Protection Module 3S 10A for 18650 Lithium Ion Battery - 11.1V - with protection

Battery Charge Protection Module 3S 10A for 18650 Lithium Ion Battery - 11.1V - with protection

Stock: In Stock
Model: MOD-PRS-REGC-240
Weight: 15.00g
Dimensions: 5.00cm x 1.60cm x 0.30cm
SKU: VEE00240
MPN: MOD-PRS-REGC-240
Location: KA, India

VEEROBOT

>10 Units sold

Product Views: 6761

Based on 0 reviews.-Write a review

Rs189.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

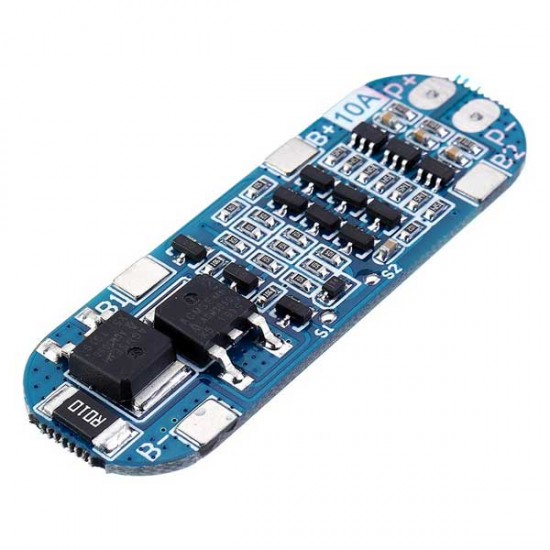

This is a 3S 10A 18650 Lithium Battery Protection Board. The module has overcharge protection function, overdischarge protection, short-circuit protection, over current protection.

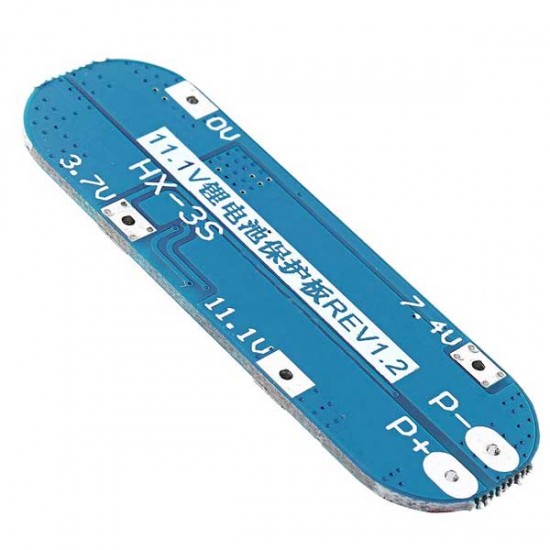

Note: Connect the battery as shown in the image and discharge on P+ and P- pins. Secondly, once the complete connections are done, make sure to connect to charger atleast once for a few seconds to activate the BMS

Specifications

Protection boards for battery packs
Over-charge voltage range: 4.25-4.35v ± 0.05v
Over-dischage voltage range: 2.3-3.0v ± 0.05v
Maximum operating current: 5-8A
Maximum instantaneous current: 9-10A
Quiescent current: less than 6uA
Internal resistance: less than 60mΩ
Dimensions : 50x16mm

Shipping List

Battery Charge Protection Module 3S 10A for 18650 Lithium Ion Battery - 11.1V - with protection x 1

10 Days Warranty

This item is covered with a standard warranty of 10 days from the time of delivery against any manufacturing defects only. Reimbursement or replacement will be done against manufacturing defects. All replacement must include all accessories, modules and anything else that was originally shipped along with the product. Please check our Refund & Cancellation policy and our Terms & Conditions for more details. To check if this the item is covered under any other Warranty period, please check "Extended Warranty" Tab (if available).
