Name: TSAL6200 - High Power Infrared Emitter 940nm 17deg
Brand: VISHAY
SKU: VEE00267
Price: 45.00 INR
Availability: OutOfStock

TSAL6200 - High Power Infrared Emitter 940nm 17deg

NewOut Of Stock

TSAL6200 - High Power Infrared Emitter 940nm 17deg

Stock: Out Of Stock
Model: CMP-ELC-LEDS-267
Weight: 15.00g

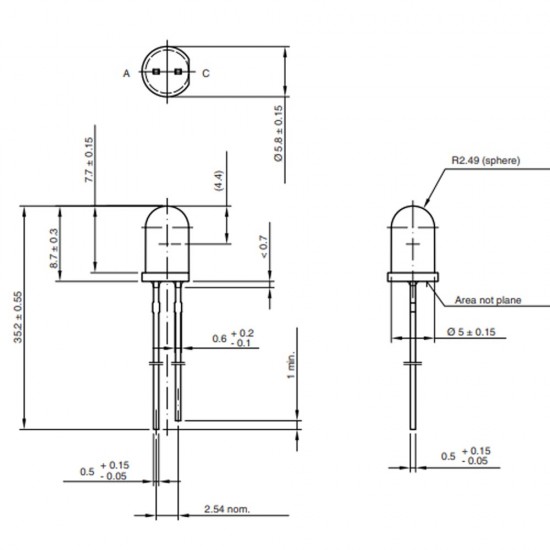

Dimensions: 5.80mm x 5.00mm x 35.00mm
SKU: VEE00267
MPN: CMP-ELC-LEDS-267
Location: KA, India

VISHAY

>18 Units sold

Product Views: 5658

Based on 0 reviews.-Write a review

Rs45.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

TSAL6200 is an infrared, 940 nm emitting diode in GaAlAs multi quantum well (MQW) technology with high radiant power and high speed molded in a blue-gray plastic package.

Applications

Infrared remote control units with high power reqirements
Free air transmission systems
Infrared source for optical counters and card readers
IR source for smoke detectors

NOTE: This is just the LED and does not come as a module. You need to solder it to a PCB or mount it somehow to convert it into a meaningful application. Do check the datasheet for application and usage.

Features

Peak wavelength: 940 nm
High reliability
High radiant power
High radiant intensity
Angle of half intensity: +/- 17 degree
Low forward voltage
Suitable for high pulse current operation
Good spectral matching with Si photodetectors

Specifications

Package type: leaded
Package form: T-1 3/4
Mounting : Leaded
Supply voltage: 2.5 V to 5.5 V
Peak wavelength: 940 nm
Weight : 15g
Dimensions (in mm): 5

Shipping List

TSAL6200 - High Power Infrared Emitter 940nm 17deg x 1

10 Days Warranty

This item is covered with a standard warranty of 10 days from the time of delivery against any manufacturing defects only. Reimbursement or replacement will be done against manufacturing defects. All replacement must include all accessories, modules and anything else that was originally shipped along with the product. Please check our Refund & Cancellation policy and our Terms & Conditions for more details. To check if this the item is covered under any other Warranty period, please check "Extended Warranty" Tab (if available).
