- Stock: Out Of Stock
- Model: CMP-ELC-LEDS-263
- Weight: 15.00g
- Dimensions: 3.20mm x 2.90mm x 35.00mm
- SKU: VEE00263
- MPN: CMP-ELC-LEDS-263
- Location: KA, India
More from this brand
VSLB3940 is a high speed infrared emitting diode in GaAlAs, MQW technology, molded in a clear plastic package.
The IR diode is used in multiple applications like remote controller, Infrared remote control units, Free air transmission systems, Infrared source for optical counters and card readers, etc.
NOTE: This is just the LED and does not come as a module. You need to solder it to a PCB or mount it somehow to convert it into a meaningful application. Do check the datasheet for application and usage.
Features
- High speed
- High radiant power
- High radiant intensity
- Angle of half intensity: +/- 22 degree
- Low forward voltage
- Suitable for high pulse current operation
- Good spectral matching to Si photodetectors
Specifications
- Package type: leaded
- Package form: T-1, clear epoxy
- Dimensions: 3 mm
- Peak wavelength: 940 nm
- Weight : 15g

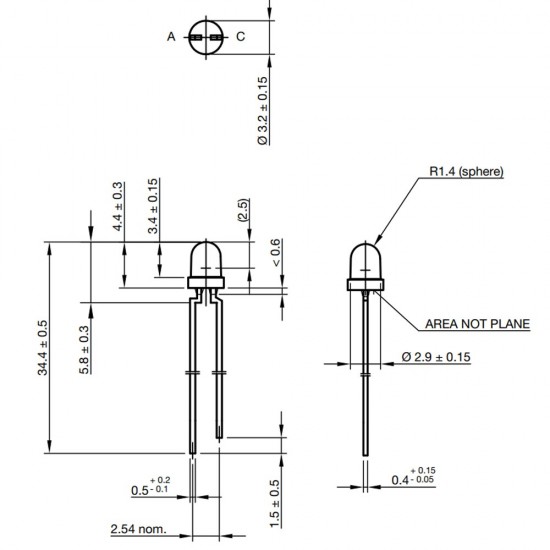

- Dimensions : 3.2 x 2.9 x 35mm
Shipping List
- VSLB3940 - High Power Infrared Emitter 940nm 22deg x 1
10 Days Warranty
This item is covered with a standard warranty of 10 days from the time of delivery against any manufacturing defects only. Reimbursement or replacement will be done against manufacturing defects. All replacement must include all accessories, modules and anything else that was originally shipped along with the product. Please check our Refund & Cancellation policy and our Terms & Conditions for more details. To check if this the item is covered under any other Warranty period, please check "Extended Warranty" Tab (if available).
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
